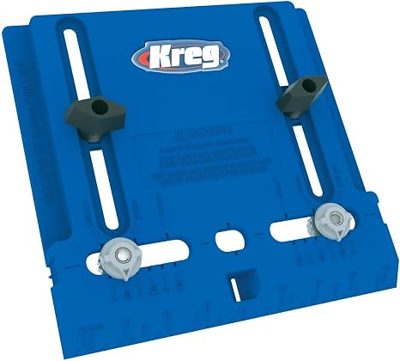

Kreg Cabinet Hardware Installation Jig (KHI-PULL)
Sets pulls 1"–5" consistently on doors and drawers.
Affiliate link placeholder · Home Depot prices as of 2026-10-14 · Amazon prices shown at checkoutNew pulls are a weekend-sized kitchen refresh. The only hard part is consistency, and a $30 jig solves that.
Hardware and jig are sold on Amazon (see current prices there). The drill is the Home Depot price as of Oct 14, 2026, if you need one. We didn't find a reliable published pro rate, so none is shown.

Tick items off as you shop. Ratings and review counts were checked on 2026-10-14. Home Depot prices are as of 2026-10-14. Amazon shows its price at checkout.

Sets pulls 1"–5" consistently on doors and drawers.
Affiliate link placeholder · Home Depot prices as of 2026-10-14 · Amazon prices shown at checkout
Kit includes battery and charger. Plenty for pilot holes and screws.
Affiliate link placeholder · Home Depot prices as of 2026-10-14 · Amazon prices shown at checkout

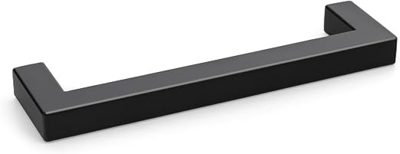

Popular 5" pull (3.75" hole spacing). Check your existing spacing.
Affiliate link placeholder · Home Depot prices as of 2026-10-14 · Amazon prices shown at checkoutMeasure center-to-center of existing holes. Matching it avoids new holes.
Set the jig for the pull size and position, then test on one door.
Drill straight through from the front with a scrap block behind to stop blowout.
If spacing changes, fill old holes with wood filler, or choose a backplate to cover them.
Insert screws from inside and snug them. Overtightening strips threads.
Close everything and eyeball each row. Small tweaks are easiest before the next door.
Our picks of the clearest tutorials. Credit and copyright belong to the creators.
The maker's demo of the jig we recommend.
Visit channel ↗A shop-made jig if you'd rather not buy one.
Visit channel ↗Common hole spacings are 3", 3.75" (96 mm) and 5" (128 mm). Matching yours avoids drilling.
Usually vertical on the stile opposite the hinge, 2–3" from the corner. Center drawer pulls.
Most pulls include 1" screws. Thicker drawer fronts may need longer 8-32 screws.
